Hardwired Vehicle GPS Tracker
4G vehicle tracker for added safety and security for Asset Tracking & Security. Simple installation, Easy track the location. Small GPS, Safeguard your vehicles with the advanced features of NBS Wired GPS Tracker. Stay in control with precision and ease. Perfect for Vehicle, Truck, Fleet, Caravan, Trailer or Heavy Machinery from NBS CONNECT SOFTWARE.
GLOBAL DISTRIBUTORS WANTED
Features
Generate tracking reports/Playback up to 2 months, Geo-fencing IN/OUT,
ACC detect automatically

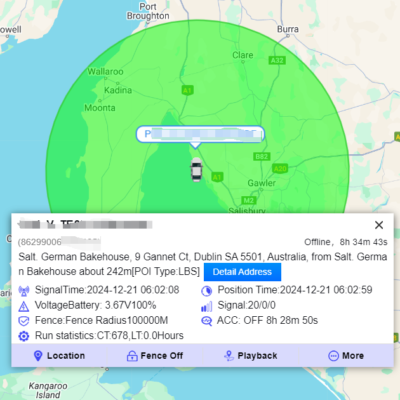

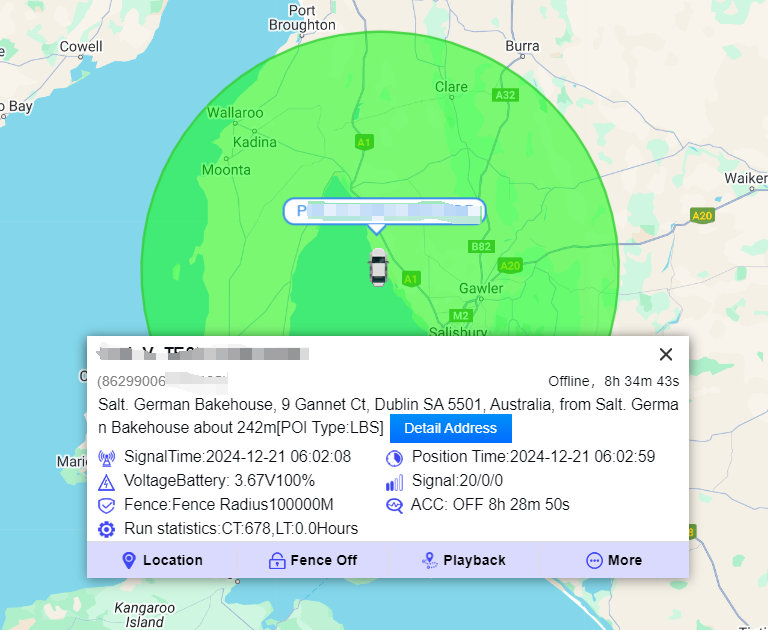

Geo fence

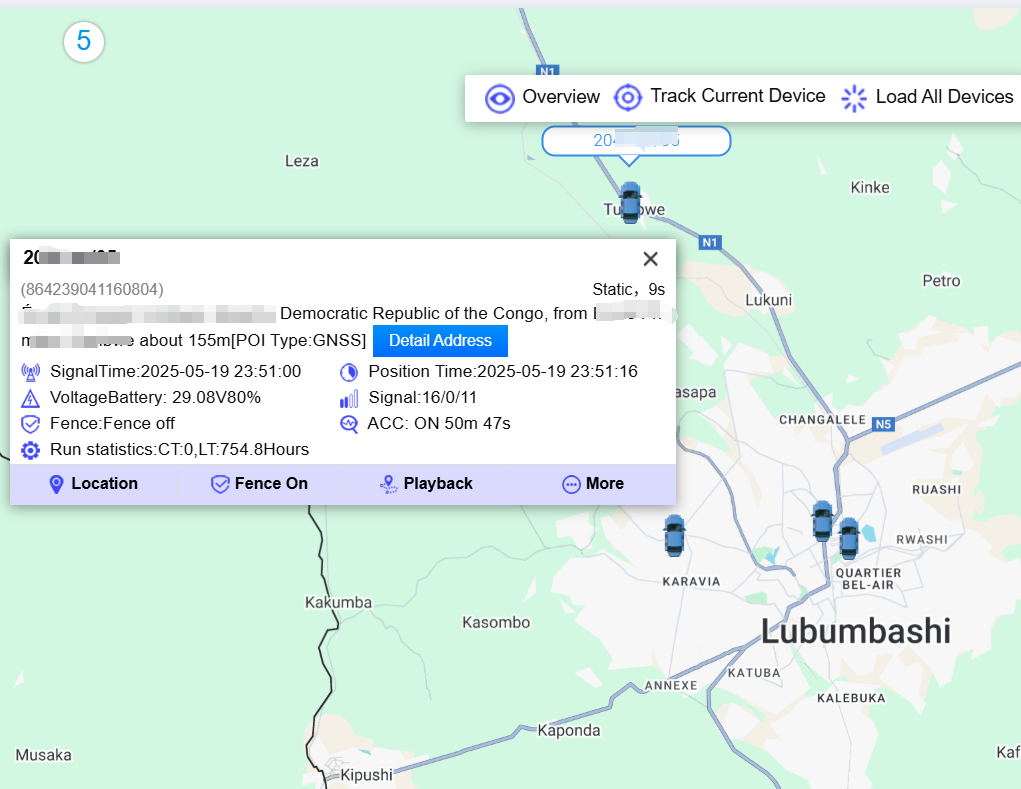

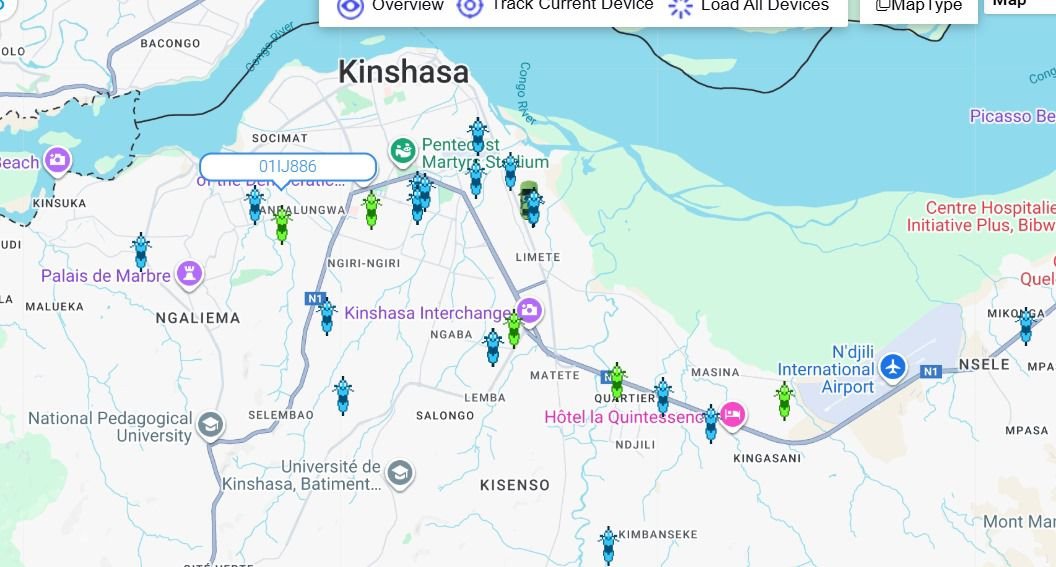

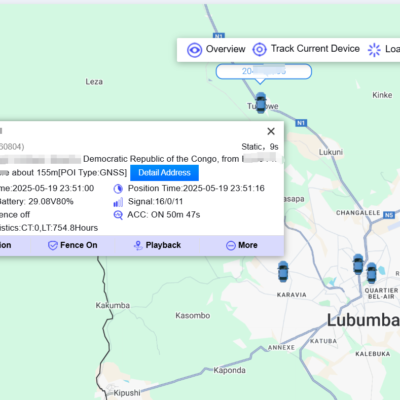

NBS PC AND MOBILE applications with loads of features
Alarm for Vibration/Wakeup/Overspeed/Offline

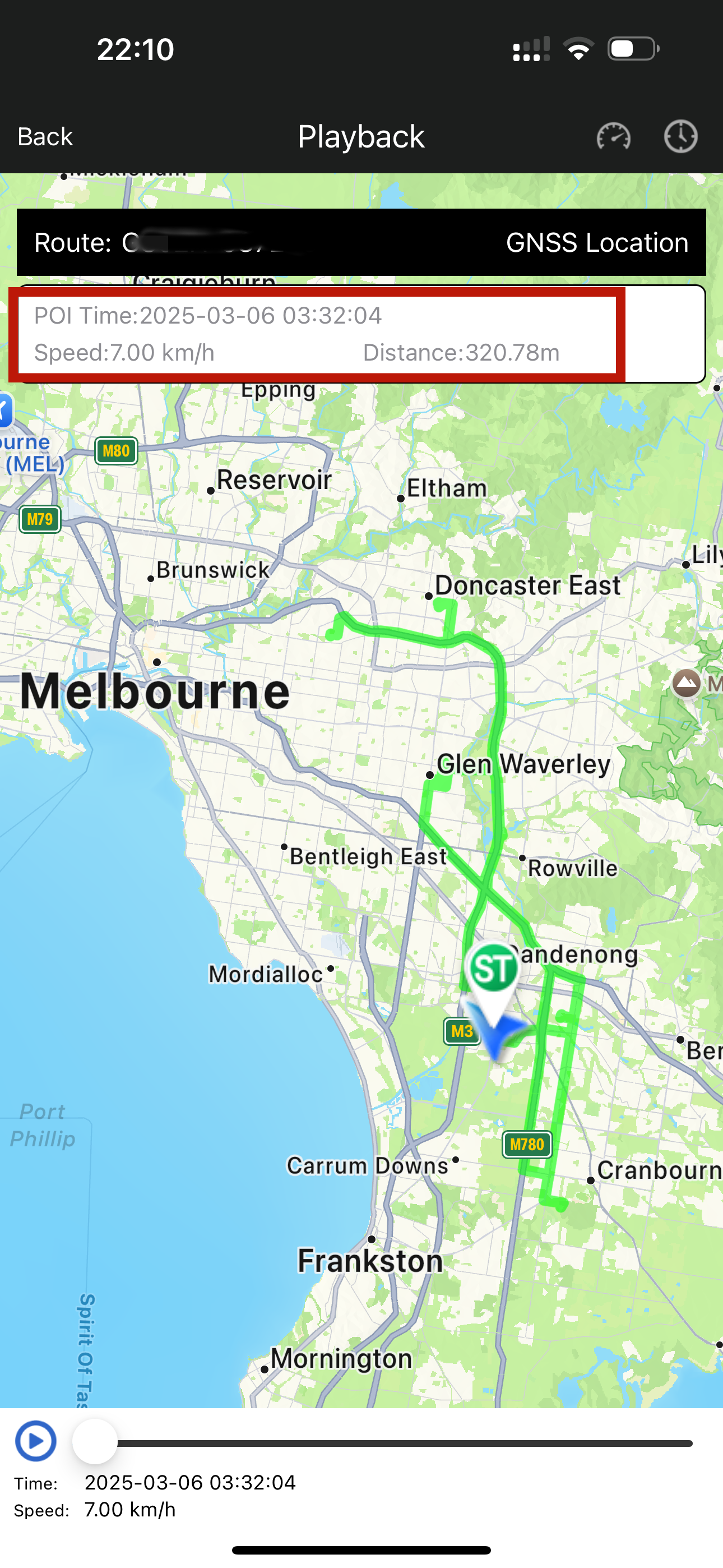

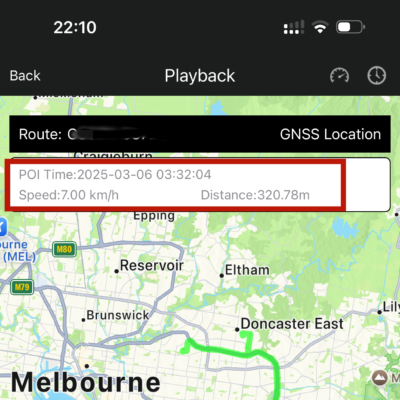

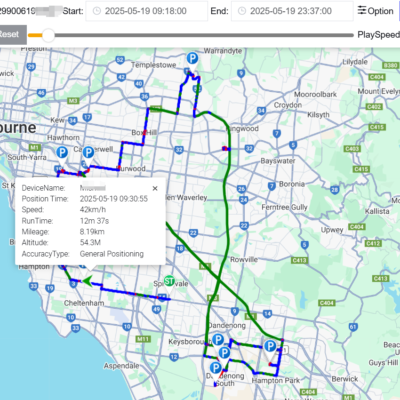

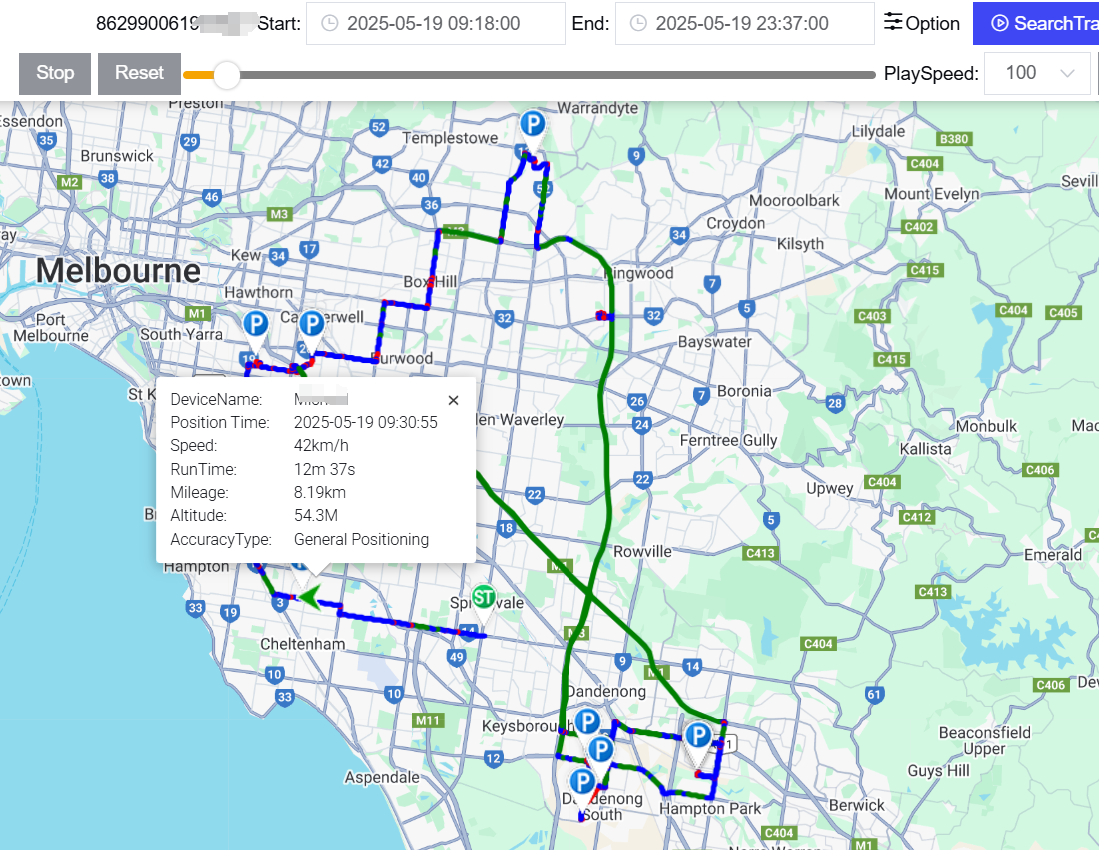

Track playback for UP TO 1 MONTHS
Hidden tracking devices
Location Query
Wired: 2Wire/ 3 wired/ 8 wired are optional
Specification
Product size : L65mm*W26mm*H12mm
Product shell material: ABS
Weight of device: 22grams
Box size: L120mm*W85mm*H50mm
CAT 1 FDD : B1/B3/B5/B7/B8/B20/B28
Working voltage: DC9V-90V
Working current: 4.32 mA @ 12 V (online standby); 23.3mA@12V (Tracking mode)
Power protection: Support for 1,500 W surge protection
Dust and waterproof level: IP54
Position mode: GPS + BD satellite, WiFi, LBS base station
Positional error:
–GPS + BD satellite positioning: <10m
–WIFI location: <300m
–LBS base station location: <2000m
GSM antenna: FPC antenna
SIM Card Specifications: Mini card (Nano SIM card: 12mm x 9mm)
Communication mode: TCP
GPS specifications
● Antenna type: built-in 18x18x2 ceramic antenna
● Recapture sensitivity: -154 dBm
● Tracking sensitivity: -160 dBm
● Positioning accuracy: about 5 m (open environment)
Operating temperature range -20℃~ +70℃
Storage temperature range -30℃ ~ +80℃
