Hook lift bin /Roll on roll off hook lift bins / RORO Manufacturer
Complies with the requirements of Australian Standards EN 12079
All our Hook lift bins/ Marrel skip with crane lift are Certified and Tagged by our head office in Australia (NEW BRIDGE SERVICE PTY LTD)

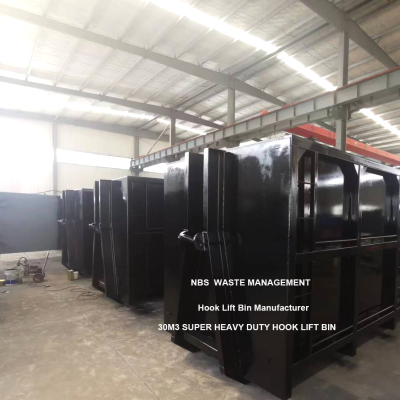

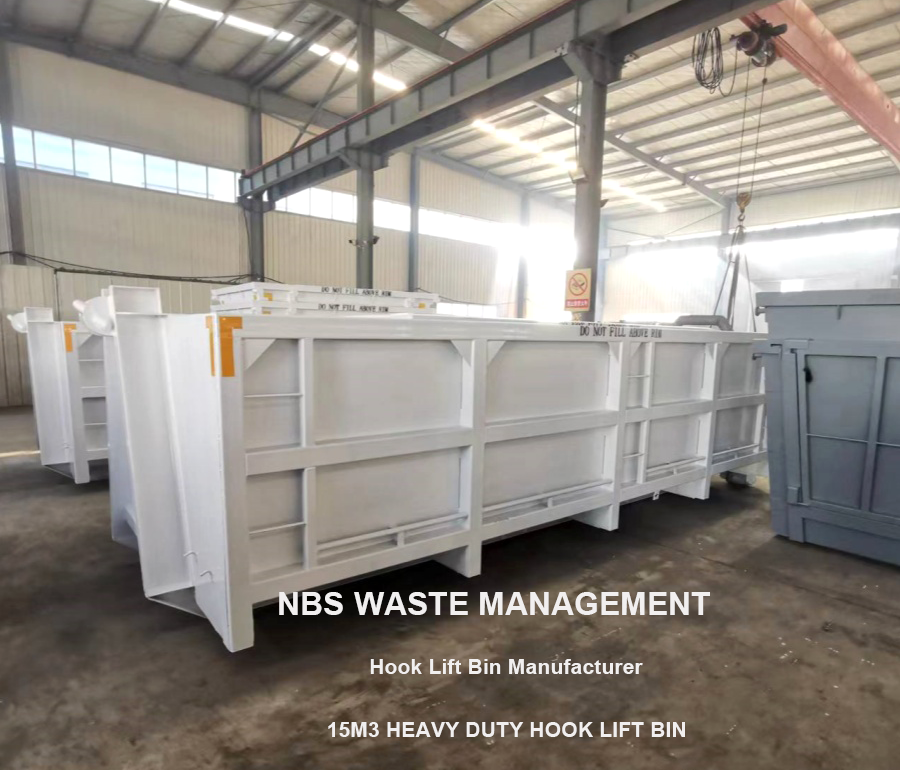

We are a fully Australian-owned company manufacturing a wide range of Hook lift bins ranging from 6M3 to 30M3.
With our own factories Both in Qingdao and in Melbourne, Victoria, we with our head office New Bridge Services, offer impeccable heavy reinforced Hook Lift Bins @ realistic CNF prices (cost and freight) to any port.

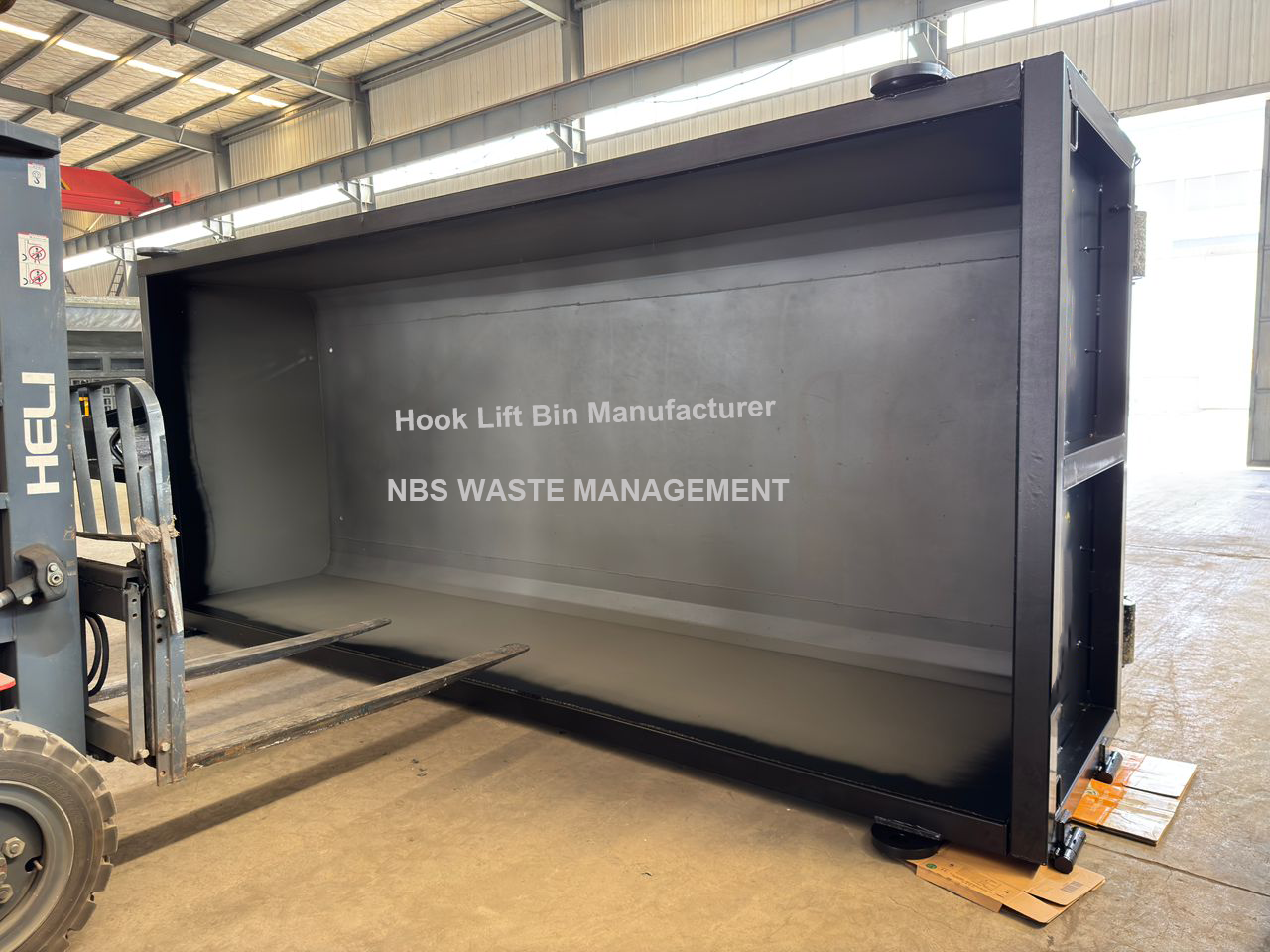

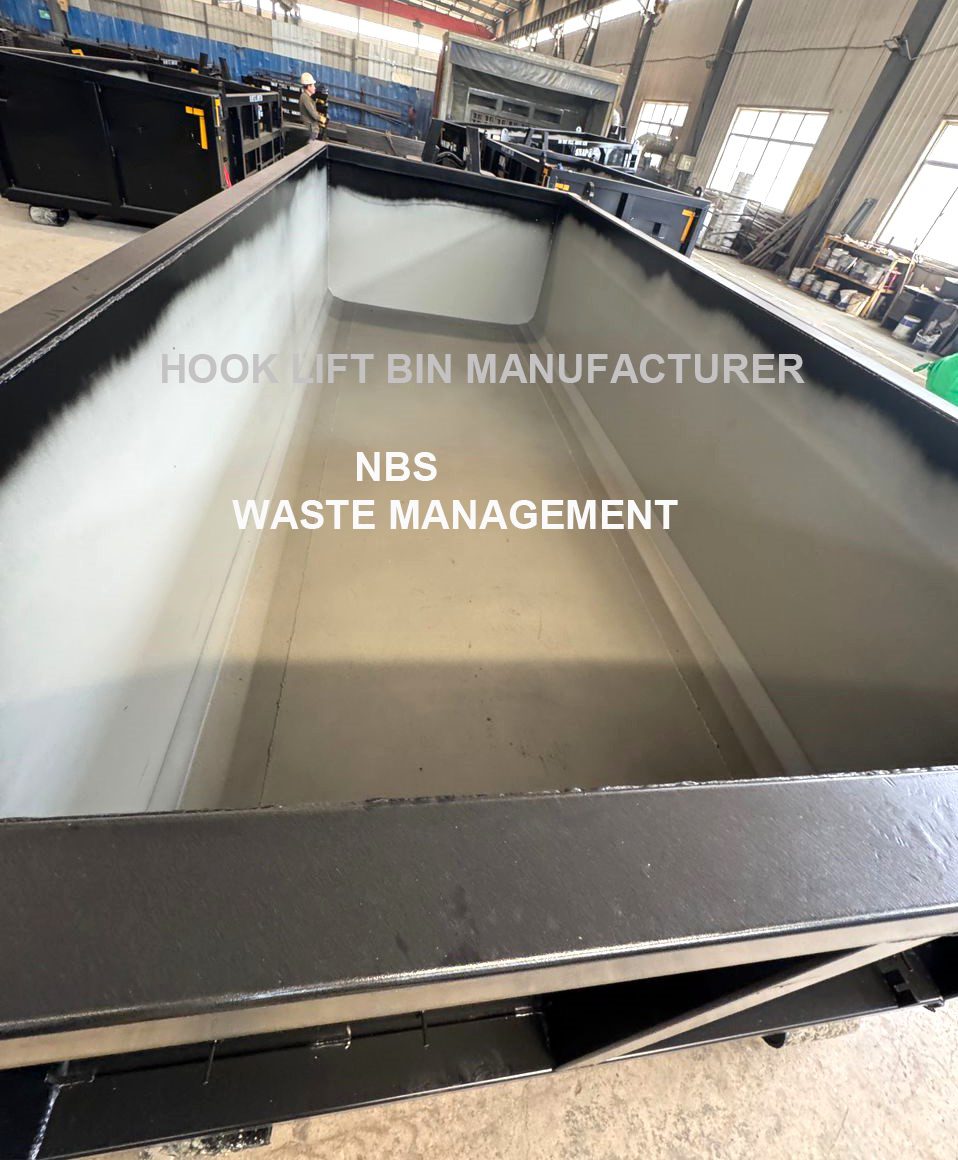

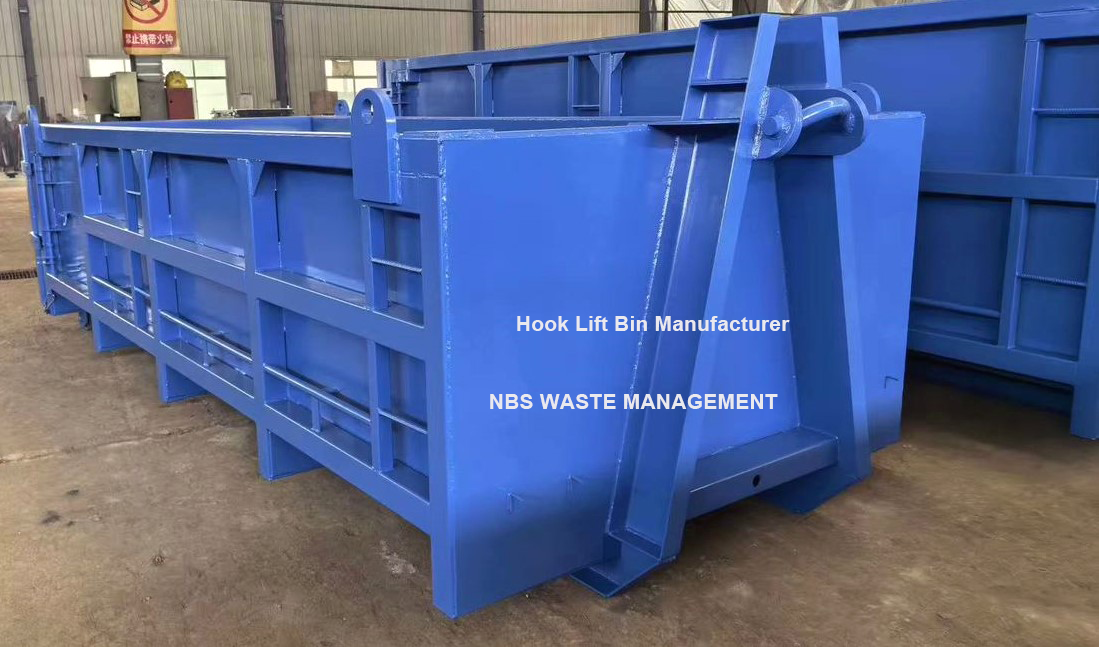

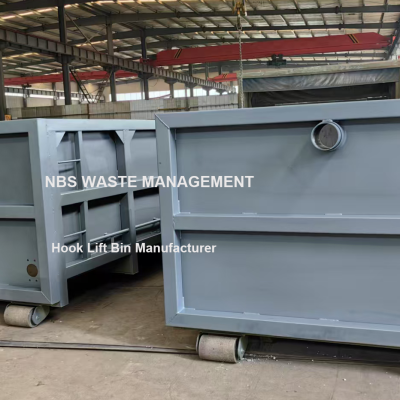

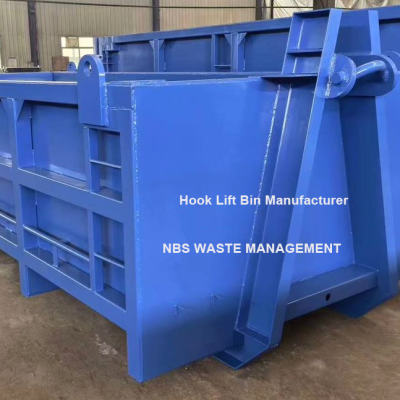

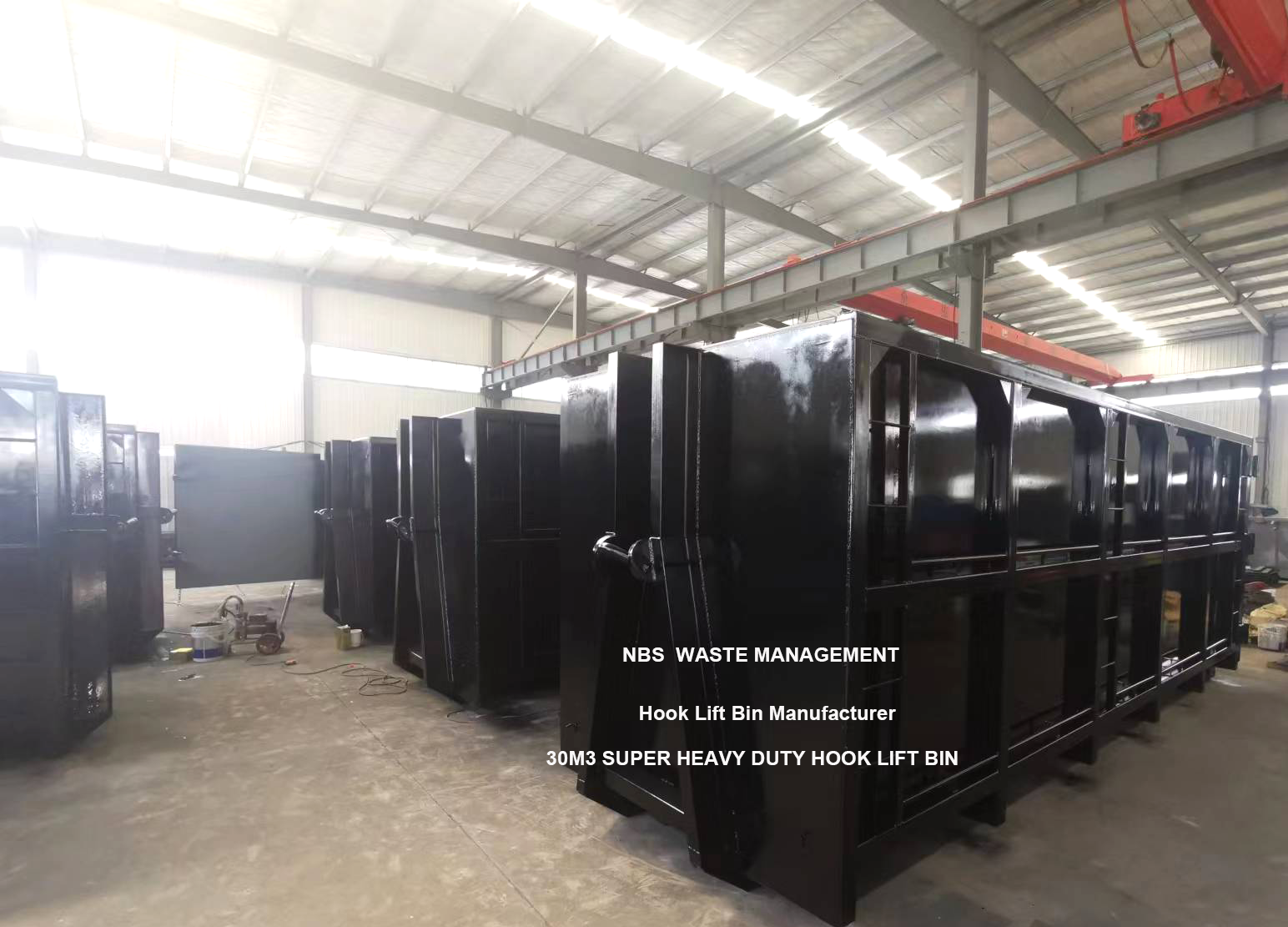

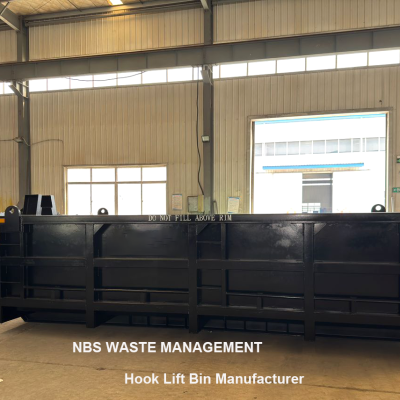

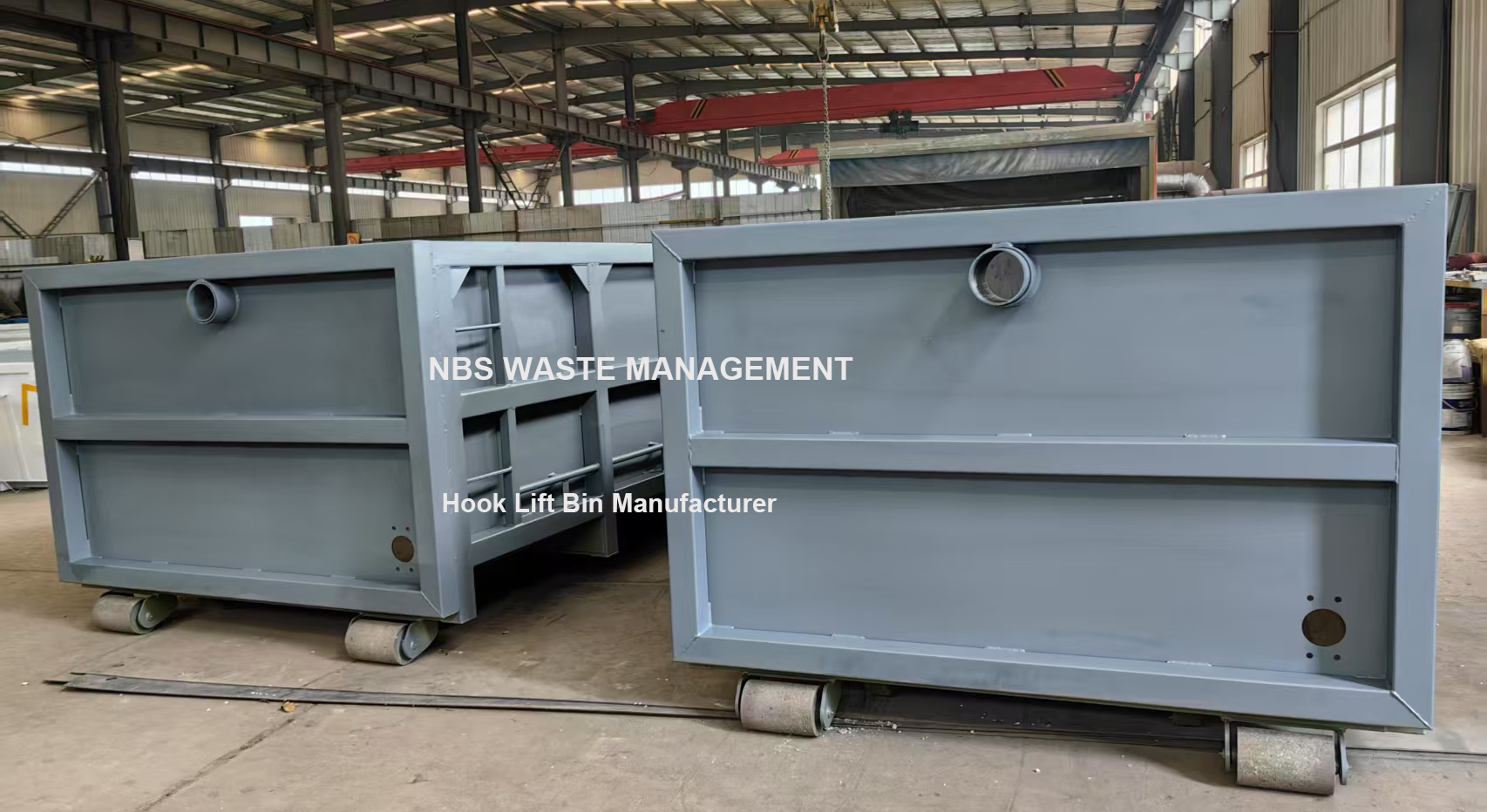

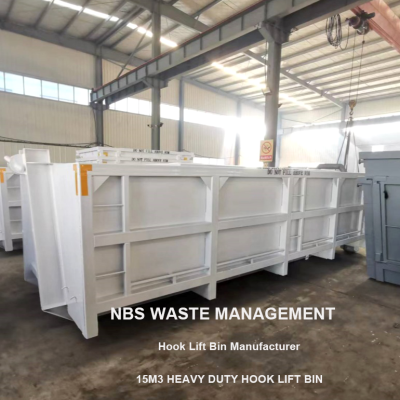

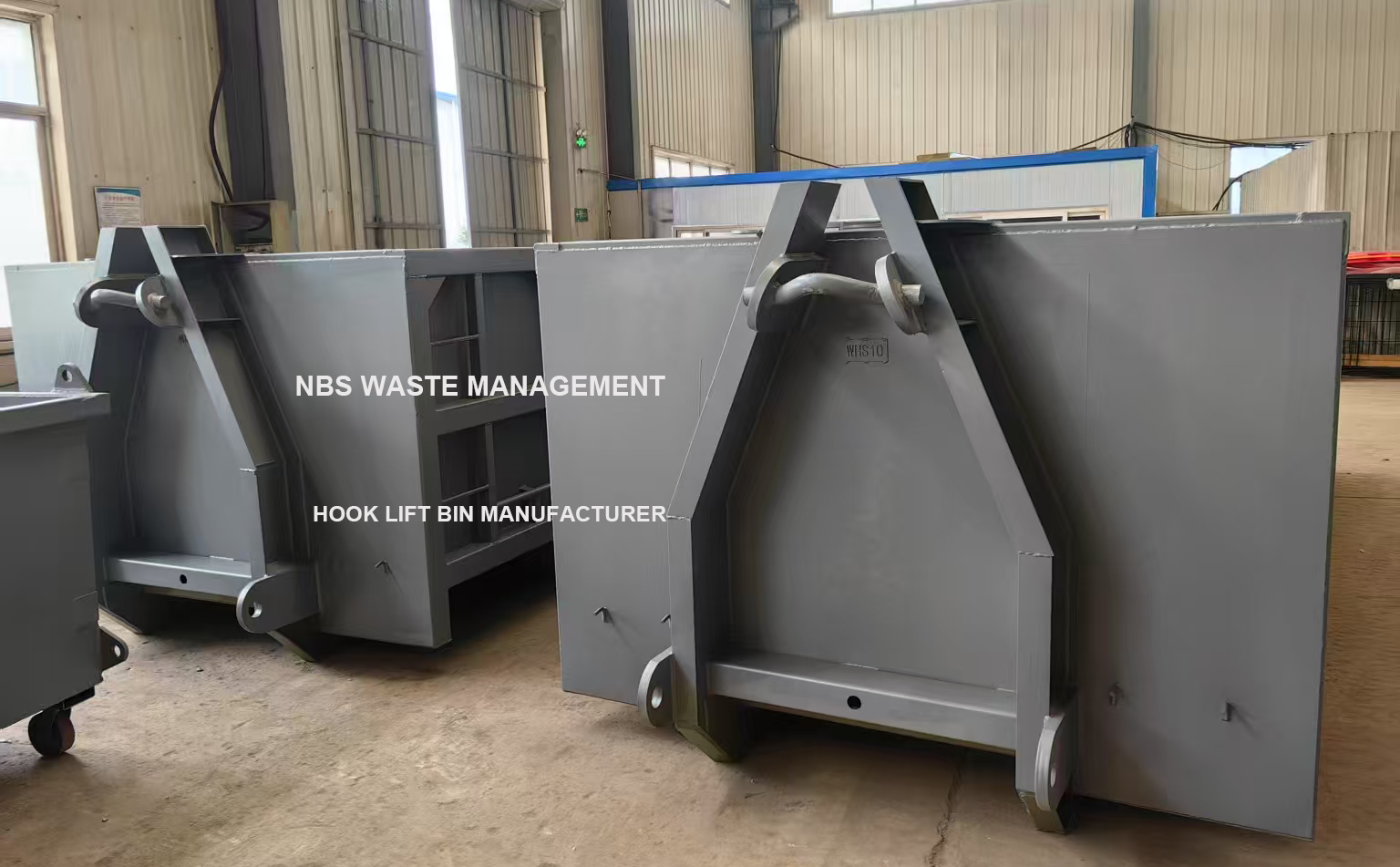

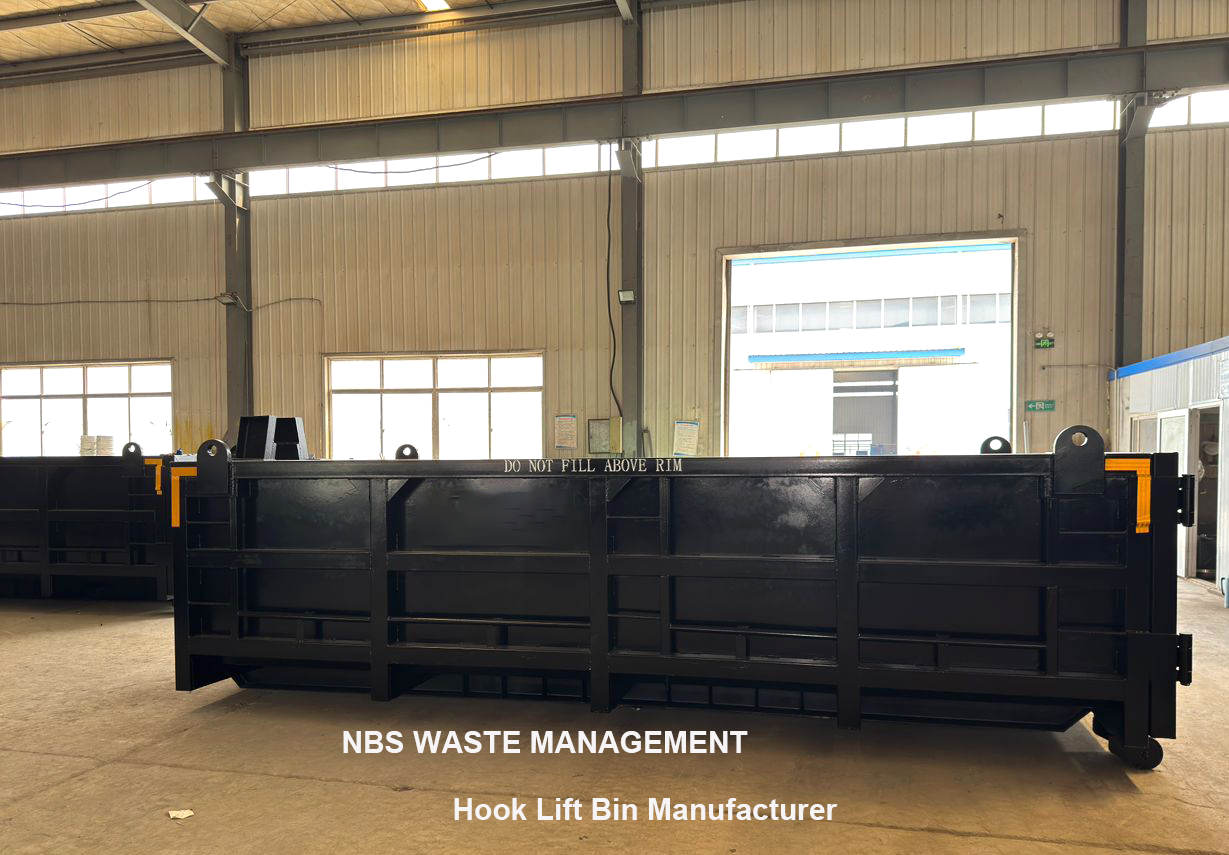

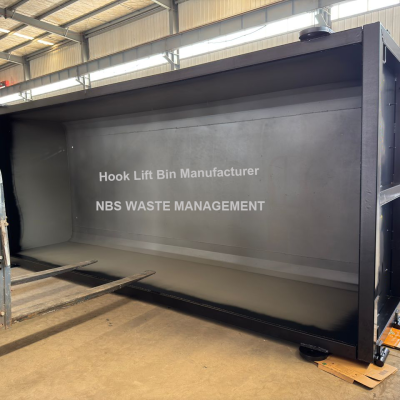

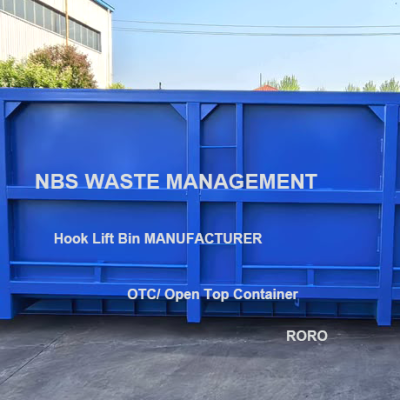

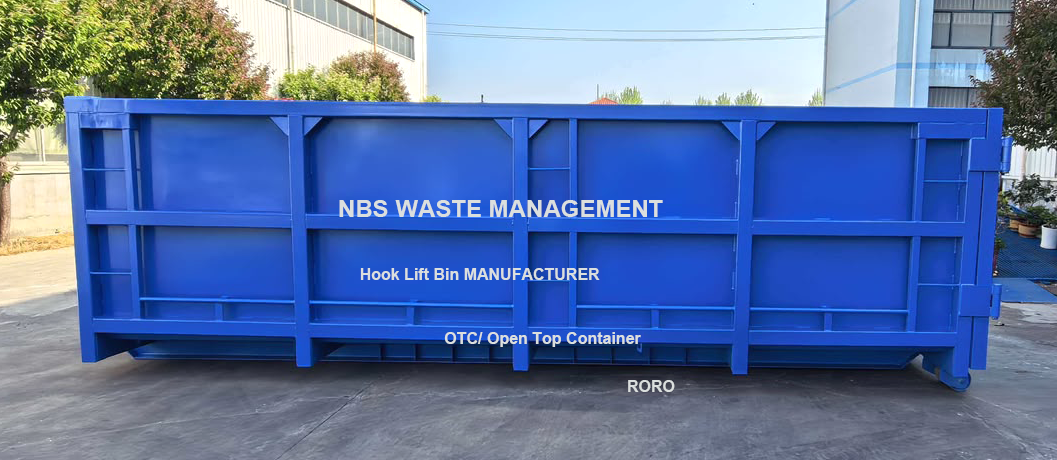

Hook Lift Bin Show

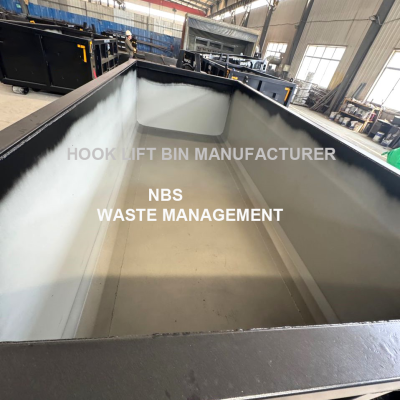

HEAVY DUTY HOOK LIFT BINS:
OUR FULLY FABRICATED HOOK LIFT SKIPS ARE:
- The bottom rails and A frame 220*80*9mm
The bottom rails face outwards
Barn door with a 10 mm plate under the door to prevent the door from sagging
Barn door with a safety ratchet Lock
heavy duty construction Top rail RHS 100*100*4MM — Side rail RHS 100*100*4mm
Crane lift eyelet’s @30mm thick (Triple pass welds) Tagged and certified in Australia

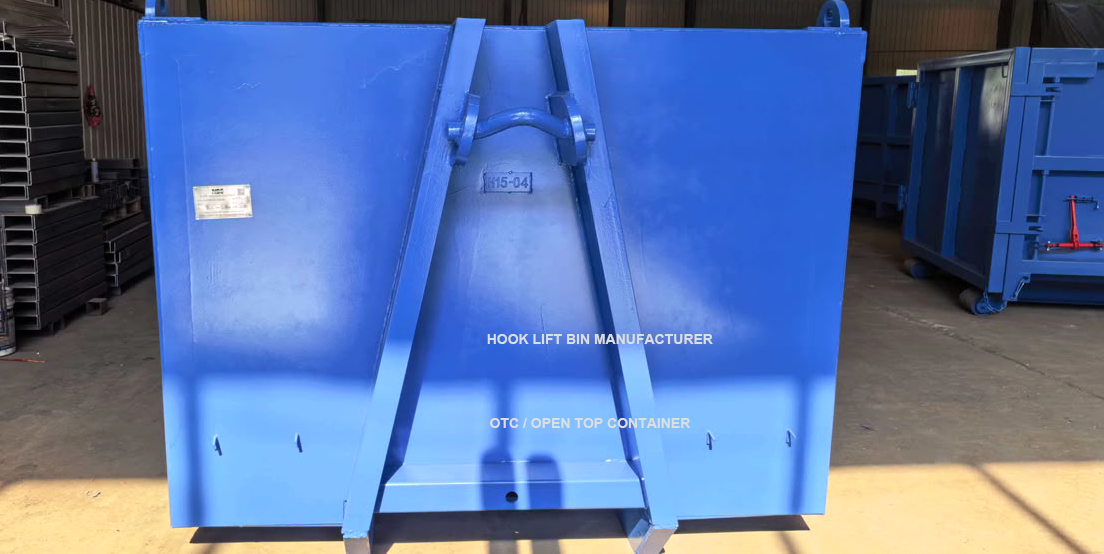

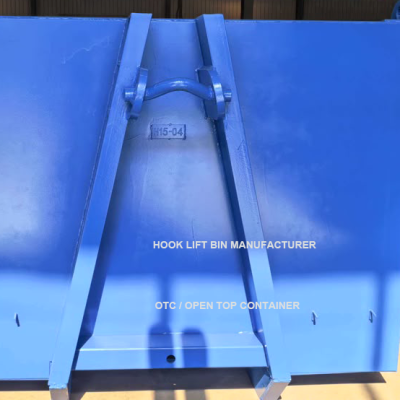

Hook pin 50mm solid (Triple pass welds) Tagged and certified in Australia
Hook height from ground to underside of lift pin 1470mm or as per your specifications
Tie rails 32*2mm pipe
2 under coats etched primer +2 topcoats with your corporate logo
Reinforcement under the frame and on the side of the walls of the bins

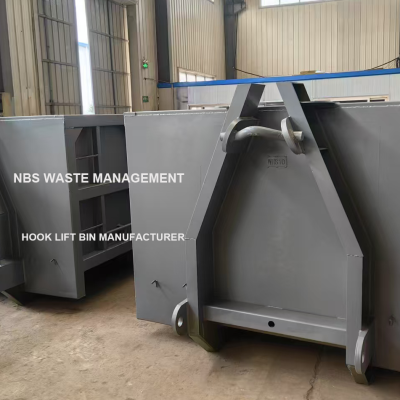

Reinforced A frame 10mm plates
